YTPQC-APF based on 3-level topology, is an Active Power Filter (APF) system designed to eliminate harmonic oscillations and reduce costs consequently. APF is a versatile solution, easily tailored to deliver power factor improvement, voltage variation control, flicker mitigation and load balancing functionality, and highly improved power quality in networks while reducing harmonic pollution.
Item NO.:
YTPQC-APFOrder(MOQ):
1Payment:
T/T,LCMarket Price:
$1500Product Origin:
Shanghai,ChinaColor:
RAL7035,BlackLead Time：
7 daysWeight：

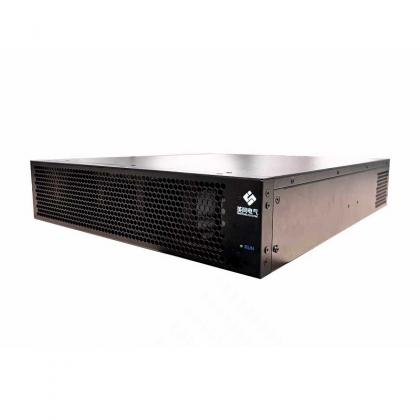

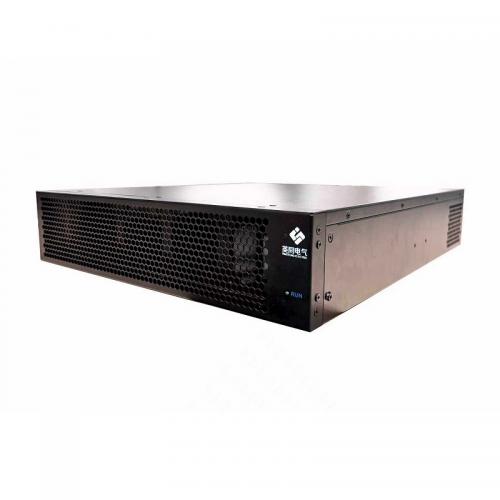

50kgYT-PQC-APF Active Power Filter
YTPQC-APF Active Power Filter is a perfect and comprehensive solution to the power quality issues of power grid , such as harmonics, reactive power and 3 phase load unbalance. YTPQC-APF which is in parallel to power grid can detect the harmonic wave in power grid in time, generate the reverse-phase compensation current through the converter and dynamically filter the harmonic wave in power grid.
The operation of YTPQC-APF is unaffected by multifarious load forms and power grid structures. And it will not produce harmonic oscillation (resonance) along with the system, thus perfectly realizing harmonic control under diverse loads. YTPQC Active Power Filter can fully accomplish dynamic reactive compensation, control the capacitor switching and ultimately heighten the power factor of power grid. Meanwhile, YTPQC-APF has the function of controlling the three-phase load current unbalance, thus comprehensively handling various power quality matters in power grid.
Modular Design
YTPQC Active Power Filter has a advanced modular design. Usually YTPQC-APF consists of one or several APF modules and an optional touched LCD Human Machine Interface. Each APF module is an independent harmonic filtering system, and users can change the harmonic filtering system rating by adding or removing APF modules.
Model Description
YTPQC-APF Active Power Filter Module series cover from 15A to 150A, support wall mounted type, rack type, free landing modules.
| SN | Item | Rated Capacity | Factory Model | Dimensions (W*D*H,MM) |
N.G (KG) |
Packing Size (W*D*H,MM) |
G.W. (KG) |
| 1 | APF | 15A | YTPQC-APF/15-4-4L-RW | 360*402*125 | 20 | 740*690*445 | 25 |
| 2 | APF | 25A | YTPQC-APF/25-4-4L-RW | 360*402*125 | 20 | 740*690*445 | 25 |
| 3 | APF | 50A | YTPQC-APF/50-4-4L-RW | 505*550*190 | 34 | 740*690*445 | 40 |
| 4 | APF | 75A | YTPQC-APF/75-4-4L-RW | 505*550*190 | 35 | 740*690*445 | 40 |
| 5 | APF | 100A | YTPQC-APF/100-4-4L-RW | 505*570*280 | 53 | 740*690*445 | 63 |
| 6 | APF | 125A | YTPQC-APF/125-4-4L-RW | 505*570*280 | 54 | 740*690*445 | 64 |
| 7 | APF | 150A | YTPQC-APF/150-4-4L-RW | 505*570*280 | 55 | 740*690*445 | 65 |
YTPQC-APF Active Power Filter is a modular, flexible, high-efficiency power quality solution for modern power networks’ problems, such as harmonics, low power factor and unbalances and so on.YTPQC-APF protects critical industrial, residential and commercial applications, solving tough power quality problems for all types of applications and customers globally.
 |
 |
| Leading Technology | Optical Harmonic Filter |
|
|
 |
 |
| Best Power Quality Control | High Quality Assurance |
|
|
YTPQC Active Power Filter has advanced features like active harmonic filtering, reactive power compensation, load balancing and capacitors controlling, as a one-stop solution for power quality management. YTPQC-APF helps to make installations compliant with prevailing power quality regulations by mitigating harmonic distortion, load unbalance and reactive power.
YTPQC Active Power Filter is available in a wide range of ratings, to serve a wide range of consumer applications. Its modular design allows flexibility in installation and integration. The inherent energy-efficient design,3 level topology, and the optional user-friendly Haman Machine Interface, make YTPQC-APF a highly preferred solution for all segments of electricity consumers, system integrators and OEM manufacture.
 |
 |
| Technical Data and Specifications | ||||
| Rated Voltage | 220V (171~269V) |
400V (300~456V) |
480V (356~515V) |
690V (483~793V) |
| Rated Current |
15/25/50/75/100/150A |
15/25/50/75/100/150A |
50/75A/100/120A |
100A,150A |
| Mains Frequency | 50/60Hz±5% | |||
| Circuit Topology | Three Level | |||
| Multi Compensation Mode | Harmonic compensation, reactive compensation, three-phase load unbalance compensation | |||
| Filter range | 2nd~51st odd order harmonics (Selective or Full compensation) | |||
| Rated of Harmonic Reduction | ≥97% (For typical harmonic order distortions) | |||
| Filtering Performance | Typically, THDi≤ 5% at rated load(Even with most complex loads). | |||
| Target Power Factor | Adjustable from -1.0 to +1.0 | |||
| 3 Phase Load Balancing Effect | ≤5%, Mitigate negative and zero sequence | |||
| Neatral Filtering Capacity | 3 times the rated filter current(in case of 4 wire device) | |||
| Switching/control frequency | 25.6kHz | |||
| Initial response time | ≤50us | |||
| Overall Response time | ≤5ms | |||
| Active loss of system | ≤2.5% | |||
| Output current limit | Automatically limited within 100% of rated capacity to output | |||
| Control algorithm | Intelligent FFT,Self-adaptive control algorithm | |||
| Controller | DSP+FPGA | |||
| Protection | Hardware protection, Software protection | |||
| Control connection | Fiber or electrical connection | |||
| Human Machine Interface | 7 inch touched TFT LCD HMI | |||
| Communication protocols | Adopt Modbus remote communication protocol; communication interface adopts RS485 and CAN bus, supporting mobile phone APP operation. | |||
| Noise | <60db (<45db during low-speed operation) | |||
| Installation method | Module embedded(Rack),wall mounted, free landing | |||
| Level of protection | IP20 | |||
| Cooling method | Speed regulation intelligent air cooling PWM Fans | |||
| Color | RAL 7035 Light Grey | |||
| Ambient temperature | -20~55℃ | |||
| Relative humidity | Maximum 95%, without condensation | |||
| Mounting height above sea level | ≤2000 at rated capacity; appropriately reduce the capacity if it is > 2000(1% derating per 100m) | |||
| Qaulifications | CE, IEEE61000,Type Test Report | |||
| Compliance with Standards | IEEE 519, ERG5/4 | |||
 |
 |
YTPQC-APF in Textile Industry
YTPQC Active Power Filter, reduced harmonic levels results in improved electrical network reliability and reduced operating costs. Nuisance tripping of protective devices and nuisance clearing of fuses due to harmonic heating effects is greatly reduced.
Overheating of motors, transformers, switchgear and cables is also reduced which increases their life expectancy and reduces maintenance costs. For new installations, over-sizing of distribution equipment to reduce harmonic susceptibility can be reconsidered.
The Background
With the development of social economy and science technology, many textile printing and dyeing enterprises in order to improve the product quality of transformation technology, large use of VFDs, DC equipment, including ventilation equipment (including frequency conversion fan and air conditioning), lighting equipment, production equipment (yarn, fine sand, grasp cotton, shaping machine, dyeing cylinder, etc.), produce a large number of 5th,7th order harmonic, cause harmonic, harmonic pollution, lead to power quality decline.
 |
 |
The Power Quality Problem
A company is specialized in the production of non-woven fabric manufacturer, producing a variety of short fiber non-woven cloth, varieties of melt-blown non-woven cloth, synthetic leather non-woven cloth, acupuncture non-woven cloth, propylene non-woven cloth, water absorption pad, filter non-woven cloth, antibacterial cotton, automotive interior materials, oil absorption mat and other non-woven products.
YTPQC-APF in Networks
The industrial load mainly includes carding machine, needle acupuncture machine, non-woven oven, coil machine, etc., which will produce series harmonics in the production process, resulting in the field capacitance compensation cabinet can not work normally.In order to ensure the normal operation of the field capacitors cabinet, the 300A active power filter is installed for harmonic mitigation.
The Technical Performance
The THDV at site is 5.9%, exceeding the national standard limit of 5%, the THDi is 23.5%, the harmonic current is mainly 3rd, 5th, 7th order harmonics, and also contains a small number of 2nd and 4th even harmonics. After treatment, THDv decreased to 2.2%, the THDi decreased to 2.0%, and the current waveform was also restored to the sinusoidal wave type.
|
Grid data before YTPQC-APF
|
Grid data after YTPQC-APF |
 |
 |
The Benefits
After installation of YT Active Power Filter, Will compliance with IEEE 519, G5/4, EN 50160 and also other power quality standards and recommendations:
