Our Commercial and Industrial ESS solutions support energy capacities ranging from 100 to 344kWh that can meet the flexible configuration needs of various scenarios. The products support both on-grid & off-grid operation modes, provide UPS function, and can realize flexible expansion, thereby maximizing investment returns and ensuring energy independence for clients. We also incorporate self-developed software to simply manage microgrid applications and participate in electricity spot market transactions in the form of virtual power plants (VPP), proactively embracing new power systems.

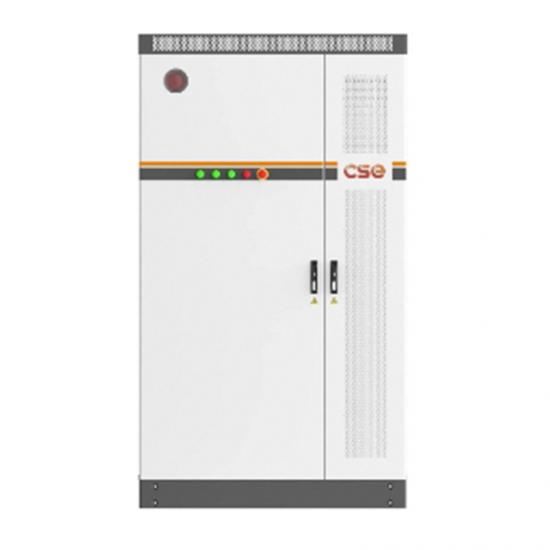

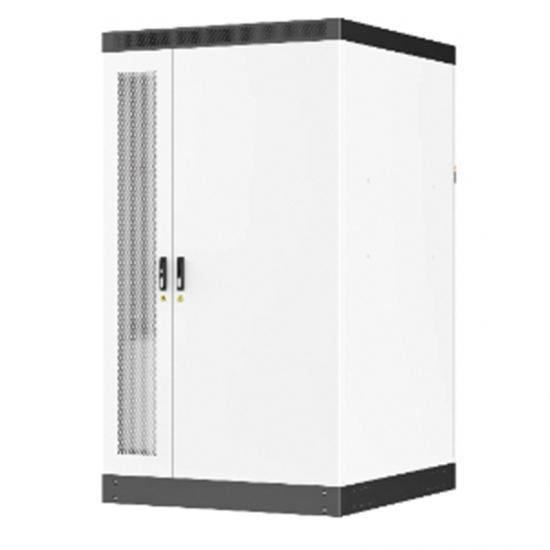

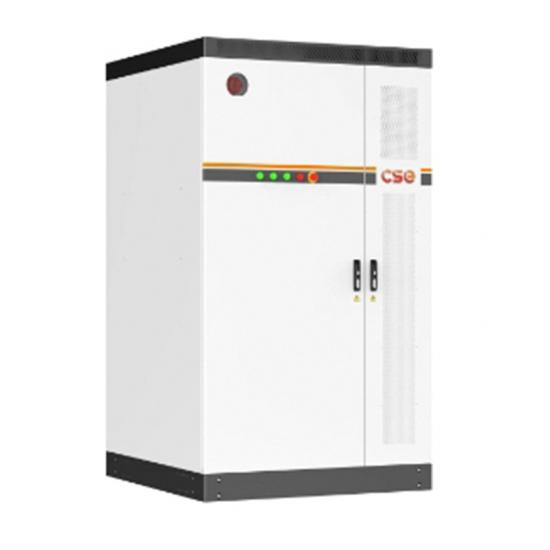

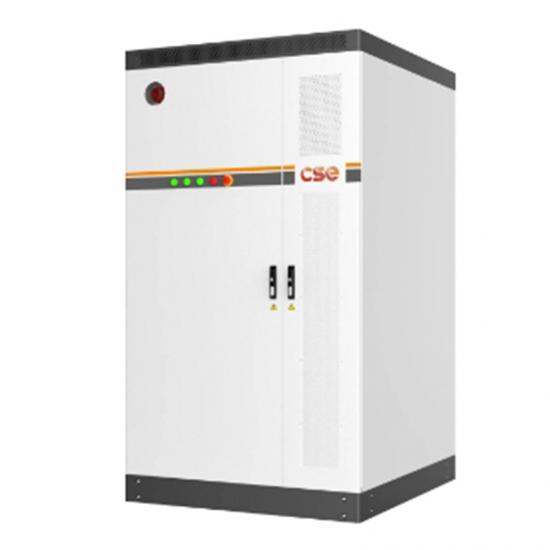

100kW/215kWh BESS is our main product for energy storage sytem.
Our Strength

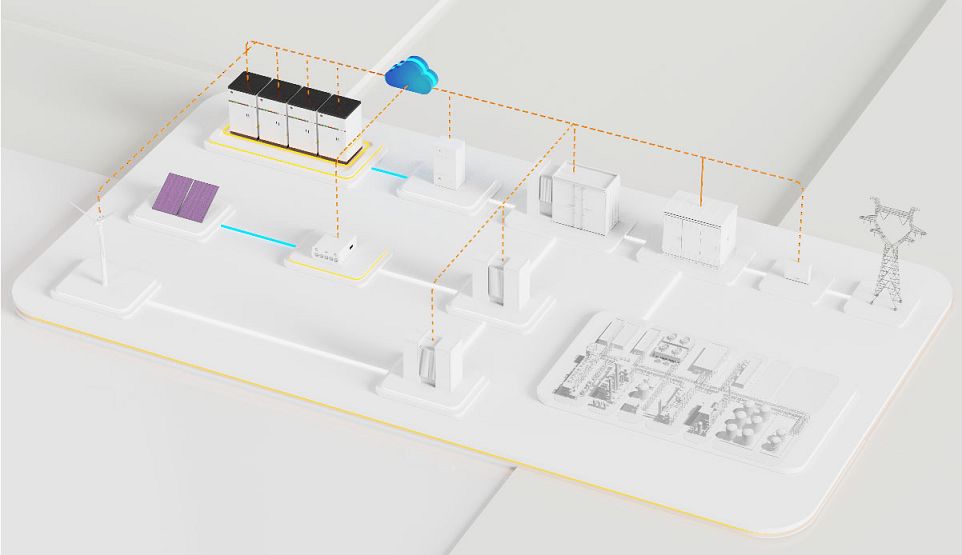

Application Scenarios
|
System Characteristics | System Composition |
|
|
|

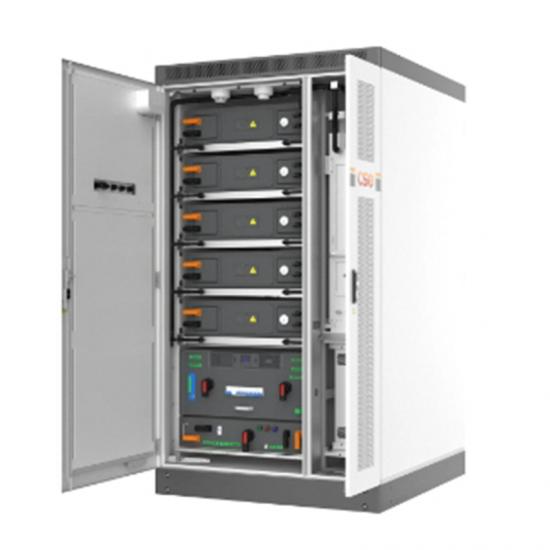

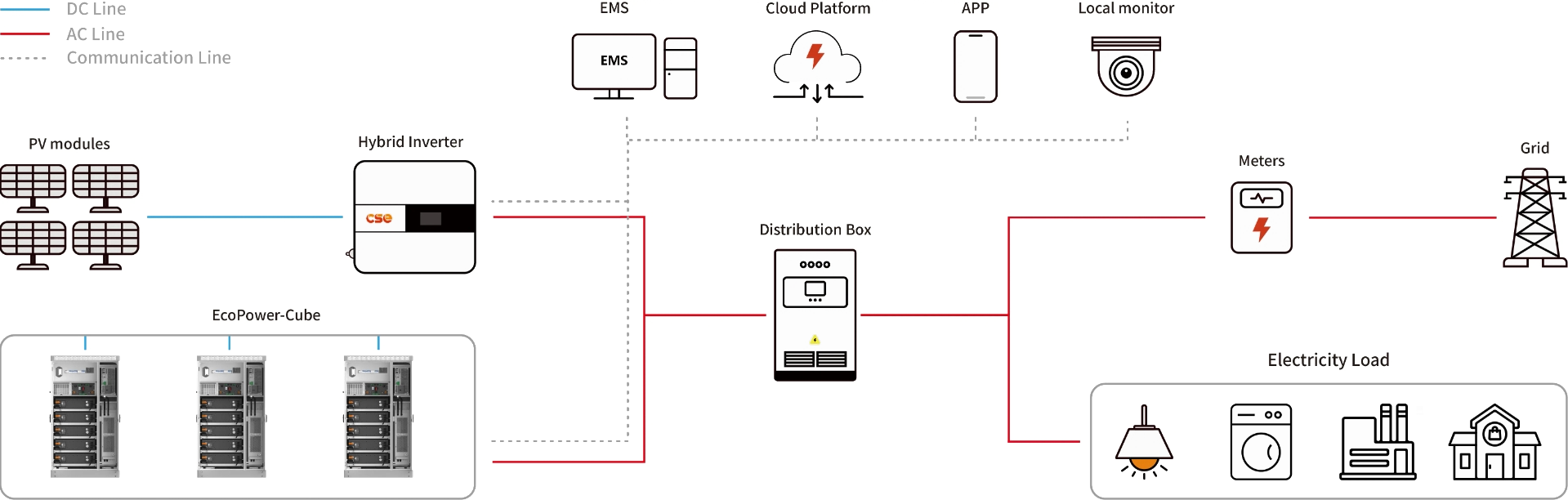

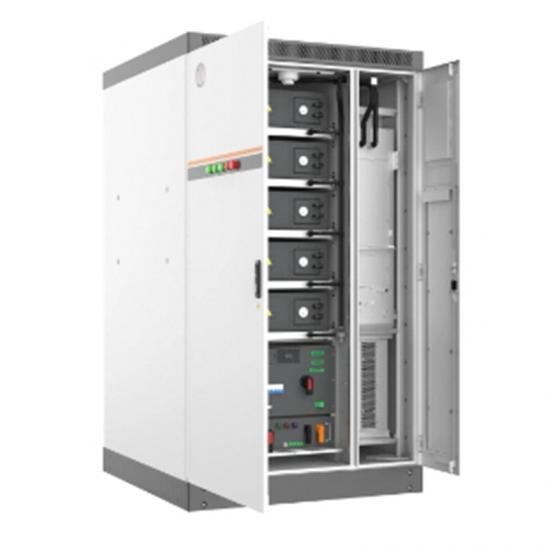

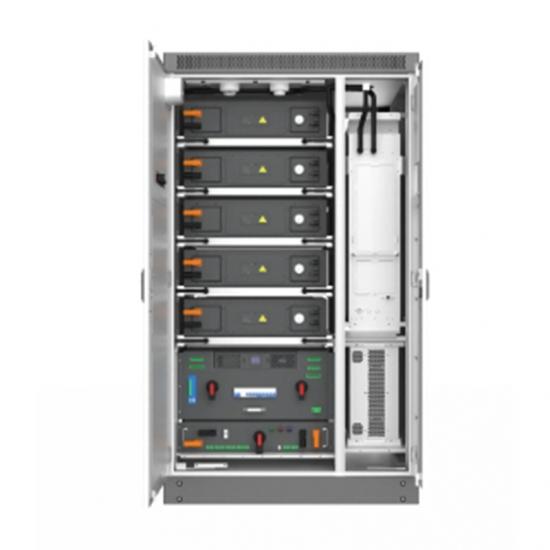

It is an one-stop integration system and consist of battery module, PCS, PV controller (MPPT)(optional ) , control system, fire control system, temperature control system and monitoring system. The synergy of the system components can achieve effective charging and discharging.
We're a leading solution provider in the field of distributed energy, focusing on industrial, commercial, and residential scenarios. YT provides core products and comprehensive solutions for energy storage systems(BESS), with a mission to lead green energy technology and bring zero-carbon energy into daily life, achieving safe, efficient, and intelligent operation of electricity.

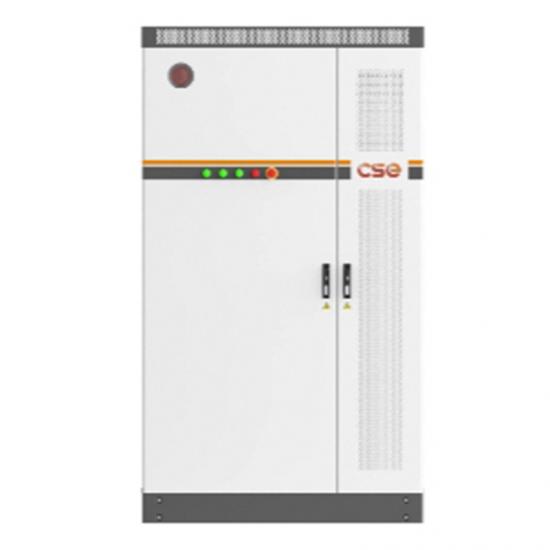

MODEL | 215KWh Ecopower Cube |
Battery Parameters | |
Battery Type | Lithium iron phosphate |
Cell Spec | 3.2V/280Ah |
String Configuration | 1P240S |
Rated DC power | 100kW |
Rated energy capacity | 215.04kWh |
Rated voltage | DC768V |
Voltage range | DC672~852V |
The charge and discharge rate | 0.5C |
Cooling | Liquid cooling |
AC Parameter(on-grid) | |
Rated power(kW) | 100kW |
Overload capacity | 100%(long term), 120%(1min) |
Rated current(A) | 145A |
AC output | 3P+N+PE |
Isolation | grid-connected without isolation |
ACPF | -0.99 ~ +0.99 |
Rated Voltage | 400V(-20%~+15%) |
Rated grid frequency | 50Hz/60Hz±2.5Hz |
Full power charge-discharge conversion time | <100ms |
AC Parameters(off-grid) | |
Rated power(kW) | 100kW |
Rated voltage | AC400V |
Rated grid frequency | 50Hz/60Hz |
THDU | ≤3% |
Unbalance | 100% |
System Parameters | |
Max efficiency |
90%
|
Life cycle | ≥8000 |
Dimension (WxDxH) |
1300*1400*2300mm
|
Weight(kg) | 2.6T |
Outlet | Bottom in and bottom out |
Operating temperature range |
charging: -15℃~52℃, discharging: 3℃~52℃
|
Storage environment |
-20℃~45℃(within a month)
0℃~35℃(within a year)
<85%ROH(no condensation)
|
Relative humidity |
0~95% (non-condensing)
|
Working altitude |
Standard 2000m(>2000m Derating)
|
Degree of protection | IP54 |
Fire configuration | Aerosal, PACK level immersion + active warning |
Communication | Ethernet |

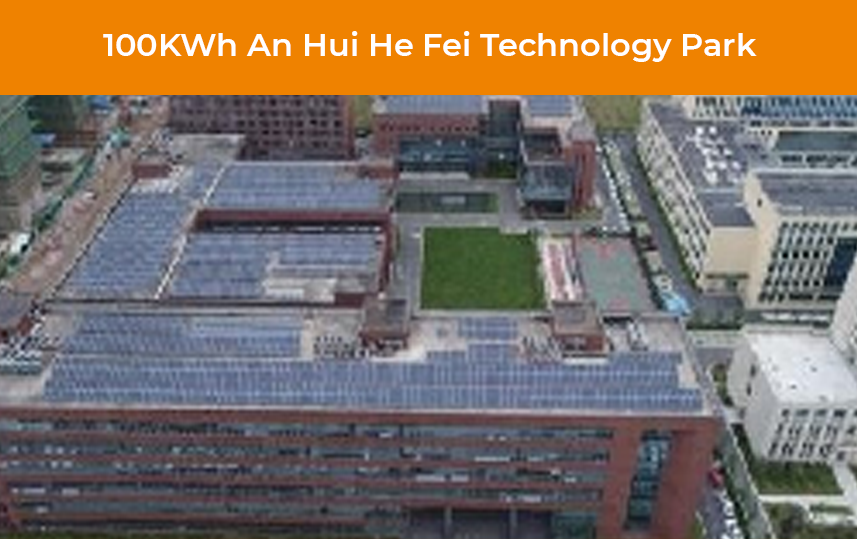

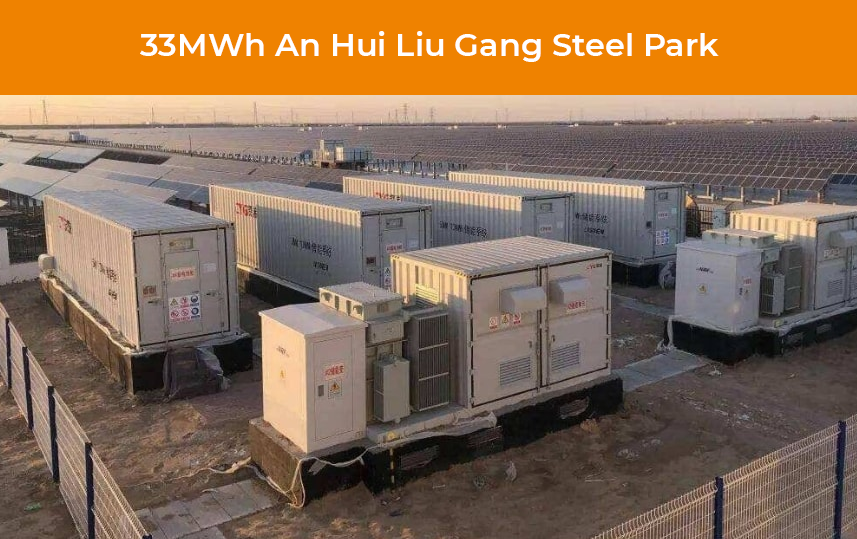

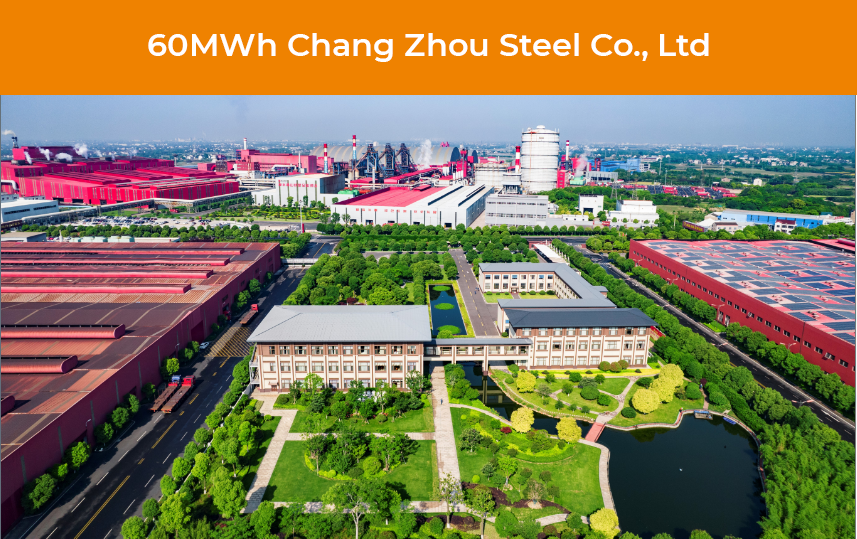

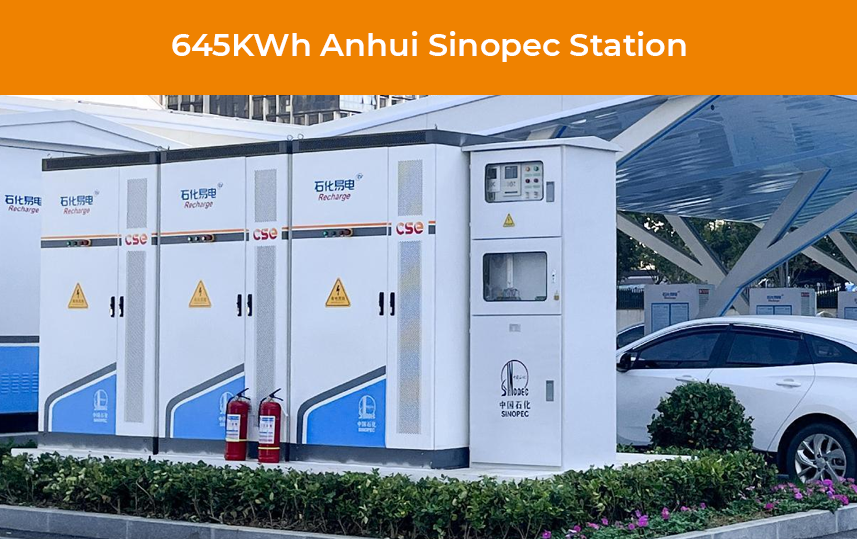

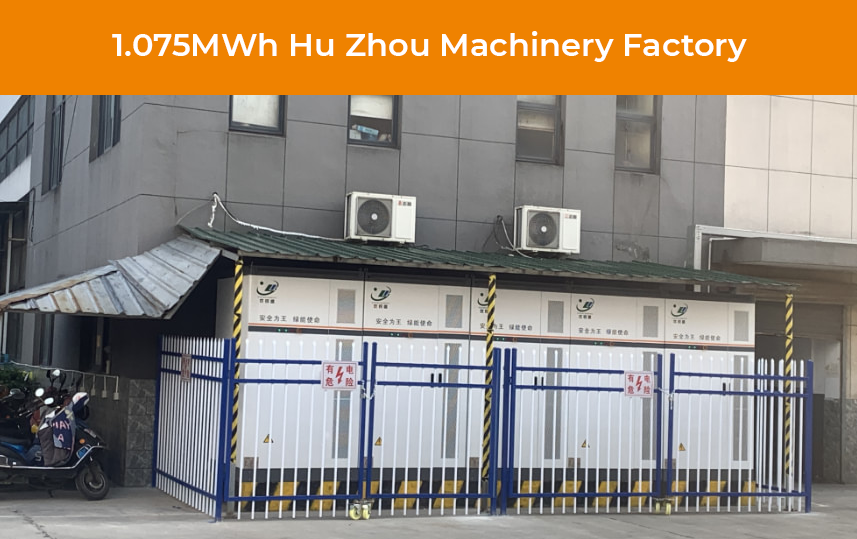

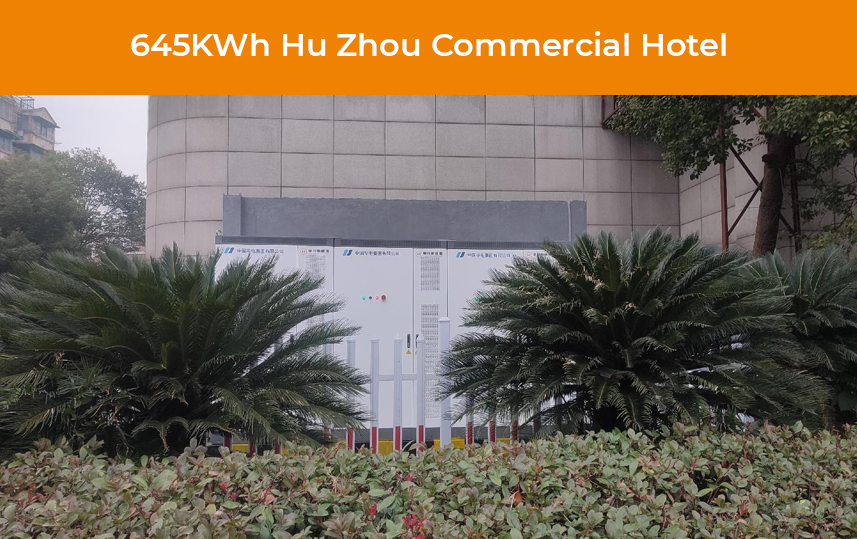

Since 2020, we have installed many BESS projects in China, Italy, Poland, Germany,Australia,etc.
User Manual & Datasheet | |
User Manual | Download |
Data Sheet | Download |
100KW PCS Certficiate & Report | |
PCS Germany Grid Connection Certificate | Download |
PCS Germany Grid Connection Report | Download |
PCS Certificate of Conformity | Download |
Australia Grid Connection Certificate | Download |
Australia Grid Connection Report | Download |
TUV Certificate | Download |
IEC Certificate | Download |
IEC Report | Download |
EMC Certificate | Download |
EMC Report | Download |
Cabinet Certificate & Report | |
ROHS Report | Download |
SVHC Report | Download |
WEEE Report | Download |
IEC 62040 Certificate | Download |
IEC 62040 Report | Download |
IEC 62477 Certificate | Download |
IEC 62477 Report | Download |
IEC62619 Certificate | Download |
IEC62619 Report | Download |
