Photovoltaic systems for single and multi-family homes ensure independence from rising energy prices and help supply environmentally-friendly and reliable decentralized energy. In many countries they also generate consistent income since power is sold to the grid at prices guaranteed by the government.
YT Electric(CSG,Stock No.300222) have supplied high-efficiency inverters and solutions for residential photovoltaic systems since 2005. The durable and high-performance power electronics in YT Electric residential inverters guarantee environmentally-friendly power generation for decades.
The CSE-RL1 Series(3~6kW residential single phase hybrid inverter), high efficiency single phase hybrid solar inverters for residential applications - the perfect choice for a single or multi-family house and for small commercial PV plants.
The CSE-RL1-3K/3.6K/4K/4.6K/5K/6K Series solar inverter features 3kW~6kW power output. This new single phase hybrid solar inverter is designed for residential PV applications where maximum versatility and profitability are important. Thanks to the high maximum efficiency up to 99.9%, optimum yield from the PV plant is ensured from the device.
Sunlight hitting solar modules on the roof is converted into direct current electricity (DC). Each solar module is made up of many solar cells. The cells absorb incoming energy in the form of sunlight and due to the nature of the silicon photovoltaic material, electrons begin to flow generating an electrical current. Wiring captures the electrical current and combines it with power from other solar cells. The DC electricity produced by all the solar modules on the roof is carried by wiring to a solar inverter.
The solar inverter converts the DC electricity to alternating current electricity (AC) used by most appliances and electronic devices in the home. The AC power from the inverter is sent to an electrical panel where it is distributed throughout the home.A PV monitoring system, such as YT(CSE) cloud allows the homeowner to view their energy production on a Smart Monitor display or via a smartphone. Excess energy produced by the solar array that is not used is fed to the electrical grid.

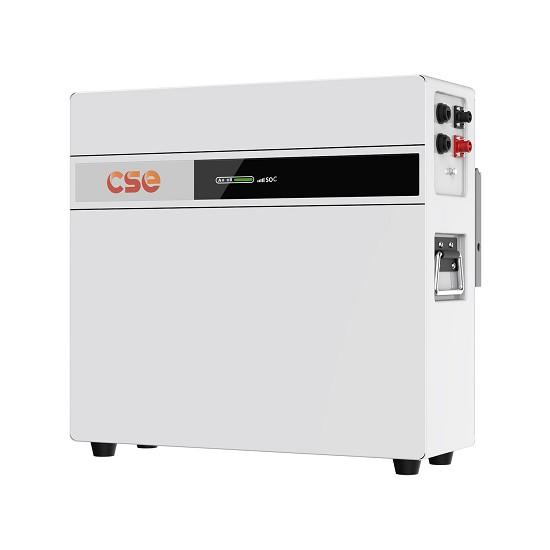

If the inverter is a hybrid variety such as the CSE-RL1 series hybrid inverter :it can send solar electricity to a energy storage device such as the Battery: to allow the homeowner to make use of the energy after the sun goes down.
With a PV system combined with energy storage the homeowner can realize the greatest independence from the local power company by producing their own electricity and using the battery power to run the household loads when they need it. Producing your own energy with a solar PV system is good for the environment because it is pollution and carbon-free and has little impact on the environment. With rising electricity prices in many countries, the use of PV and energy storage helps the homeowner to fix their energy costs and once the system is paid off, enjoy the benefits of free electricity from their PV system.
The CSE-RL1 Hybrid solar inverter features 3.0 kVA power output. This new single phase hybrid solar inverter is designed for residential PV applications where maximum versatility and profitability are important. Thanks to the high maximum efficiency up to 99.9%, optimum yield from the PV plant is ensured from the device.
For the system planner, maximum flexibility is ensured thanks to a wide input voltage range of 30 to 600 V. The new unit is compatible with major types of PV Modules and the robust IP65 rated enclosure allows outdoor installation.
The lightweight and compact design of the CSE-RL1 greatly simplifies installation. The scope of delivery includes a wall bracket as well as an AC plug and DC plugs.
Built-in Wi-Fi communication allows the user to commission and view the status of the inverter on a mobile device. The app is available for iOS and Android.
Model | CSE-RL1-3K | CSE-RL1-4K | CSE-RL1-6K |
Input(DC) | |||
Max Power | 4.6kW | 6kW | 7kW |
Max. DC voltage | 550Vdc | 550Vdc | 550Vdc |
MPPT voltage range | 125V-500V | 125V-500V | 125V-500V |
Number of MPP tracker | 2 | 2 | 2 |
Strings per MPP tracker | 1 | 1 | 1 |
Max. input current per MPPT | 14A | 14A | 14A |
Output(AC) | |||
Nominal AC output power | 3kW | 4kW | 6kW |
Max. AC apparent power | 3300VA | 5500VA | 6600VA |
Nominal AC voltage | 230V,L-N | 230V,L-N | 230V,L-N |
AC voltage range | 150-280V | 150-280V | 150-280V |
AC grid frequency range | 50Hz / 60Hz±5Hz | 50Hz / 60Hz±5Hz | 50Hz / 60Hz±5Hz |
Max. output current | 13A | 17.4A | 26A |
Power Factor | Leading 0.8~ lagging 0.8 | ||
THDi | <3% | ||
AC output topology | L+N+PE | ||
Battery | |||
Battery voltage range | 40~58 |
||
Max. charging voltage | 58 | ||
Battery type | Lithium/lead-acid |
||
Max. charge/discharge current | 95/62.2 | 95/83.3 | 95/110 |
Communication | CAN/RS485 | ||
EPS Output | |||
Rated Power | 3kW | 4kW | 6kW |
Rated output voltage | 230V |
||
Rated output current | 13 | 17.4 | 26 |
Rated frequency | 50/6 |
||
Automatic switching time | <20ms | ||
THDu | <2% | ||
Overload capacity | 110%,30S/120%,10S/150%,0.02S | ||
General Specifications | |||
Battery charge/discharge efficiency | 95% |
||
DC Max. efficiency |
97.6% | ||
Europe efficiency | 97.0% | ||
MPPT effficiency | 99.9% | ||
Ingress protection | IP65 | ||
Noise emission | <35dB | ||
Operation temperature | –25℃~+60℃ | ||
Cooling | Natural | ||
Relative humidity | 0~95%(Non-condensing) | ||
Weight | 25kg | ||
Dimensions | 550*200*515mm | ||
Altitude | 2000m(>2000m Derating) | ||
Isolation transformer | No | ||
Self-consumption | <3W | ||
Display and Communication |
|||
Display | LCD | ||
Interface:RS485/wifi/4G/CAN/DRM | Yes/Opt/Opt/Yes/Yes | ||
Safty Standard | EN/IEC62109-1/2;IEC/EN62477-1 | ||
On Grid Standard | IEC/EN61000-6-1;IEC/EN61000-6-3; |
||
EMC | South Africa NRS097-2-1:2017,UK G98,G99 |
