In the intricate realm of electrical engineering, harmonics emerge as a subtle yet influential phenomenon that can significantly impact the efficiency, reliability, and safety of electrical systems. These unwanted frequencies, riding alongside the fundamental power waveform, can wreak havoc on various components and overall system performance. Today, we'll delve into the intricate world of harmonics, unraveling their sources, understanding their effects, and exploring the strategies to mitigate their detrimental influence.
Harmonics : The Unwelcome Companions
To appreciate the impact of harmonics, we must first understand what they are. In an ideal electrical system, current and voltage flow in smooth, sinusoidal waves. Harmonics are additional currents or voltages at frequencies that are integer multiples of the fundamental frequency (usually the frequency of the alternating current supply, typically 50 or 60 Hz). These additional frequencies distort the otherwise clean sine wave, causing irregularities in the power supply.
The Genesis of Harmonics
Harmonics are primarily generated by non-linear loads, which draw power in a non-sinusoidal manner. Devices like variable frequency drives (VFDs), switched-mode power supplies (SMPS), and electronic lighting systems are major contributors. When these devices draw current in short pulses rather than a smooth wave, they introduce harmonic frequencies into the electrical system.
The Widespread Impact
1. Equipment Overheating and Reduced Efficiency
One of the most direct and detrimental effects of harmonics is the overheating of electrical equipment, especially transformers and motors. Harmonic currents cause additional heating due to the increased resistance they encounter in the system's impedance. This not only reduces the efficiency of the equipment but can also lead to premature failure and costly repairs or replacements.
2. Voltage and Current Distortion
Harmonics can distort voltage and current waveforms, leading to voltage drops and fluctuations. This can cause equipment to operate inefficiently or even malfunction. Motors may experience torque pulsations, reduced output, and increased vibration, while sensitive electronic equipment may suffer from malfunctions or inaccurate readings.
3. Power Factor Reduction
The presence of harmonics can lower the power factor of a system, indicating a less efficient use of electrical power. A low power factor means that more current is drawn from the source to deliver the same amount of useful power, resulting in higher energy costs.
4. Interference and Communication Issues
Harmonics can also interfere with communication systems and control circuits, causing disruptions and errors in data transmission. This is particularly problematic in industrial settings where reliable communication is crucial for automation and safety systems.
5. Protection System Malfunction
Electrical protection systems, designed to safeguard equipment from abnormal conditions, can be triggered falsely by harmonics. Tripping of circuit breakers due to harmonic-related overloads can lead to unnecessary downtime and productivity losses.
6. Harmonic loss
Because the value of harmonic loss is smaller than that of fundamental loss and the calculation is difficult, it is generally ignored in the theoretical calculation of line loss. However, with the development of power electronics technology, the nature of power generation and electrical equipment is becoming increasingly complex, and various nonlinear components put into the power grid are increasing. The impact of harmonic loss on the electrical environment can not be ignored.
Mitigation Strategies: Battling the Unwanted Frequencies
Some solutions
1. Passive Harmonic Filters
These filters use inductors and capacitors to absorb or block specific harmonic frequencies, allowing the fundamental frequency to pass through undistorted.

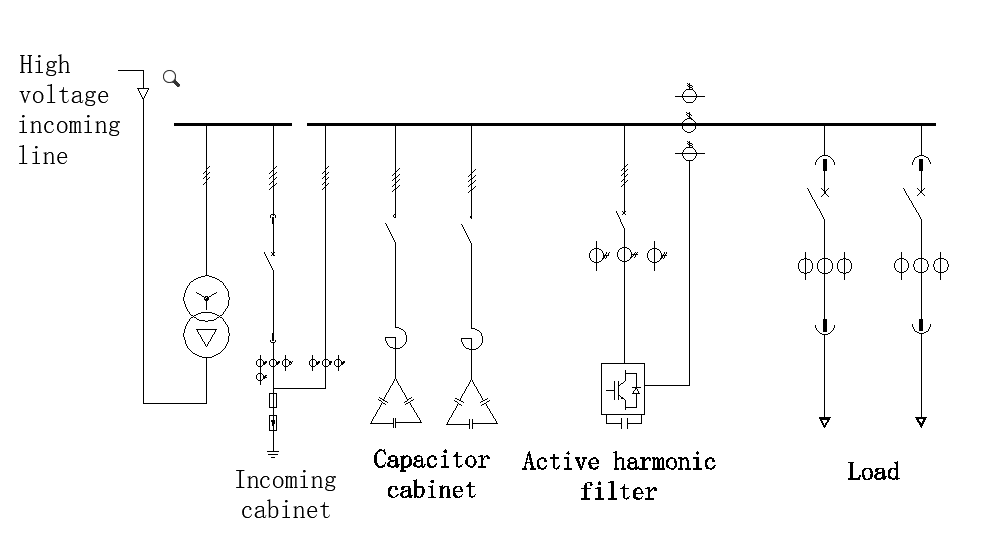

2. Active Harmonic Filters
Unlike passive filters, active filters inject compensating currents into the system to neutralize the harmonic currents, providing a more dynamic and precise solution.
3. Harmonic-Neutralizing Transformers
Specialized transformers with specific winding configurations can mitigate harmonics by reducing their propagation throughout the system.
4. Design for Low Harmonic Distortion
Incorporating harmonic mitigation techniques during the design phase of electrical equipment and systems can significantly reduce harmonic generation from the outset.
The Role of Standards and Regulations
International standards like IEEE 519 and IEC 61000 provide guidelines for harmonic limits and measurement techniques, ensuring that electrical equipment and installations meet acceptable harmonic performance criteria. Adherence to these standards is vital for maintaining power quality and reliability.
Innovation and Technology
Emerging technologies, such as artificial intelligence (AI) and machine learning (ML), are being explored to dynamically monitor and mitigate harmonics in real-time. These advanced systems can predict harmonic behavior, optimize filtering strategies, and enhance overall system resilience.
In conclusion, harmonics pose a multifaceted challenge to electrical systems, impacting efficiency, reliability, and safety. Understanding their effects and employing effective mitigation strategies is essential for maintaining a robust and sustainable power infrastructure. As technology evolves and our reliance on electricity grows, so too must our efforts to master the harmony of our electrical networks. Through a combination of technical innovation, regulatory compliance, and consumer awareness, we can minimize the impact of harmonics and secure a future powered by clean, efficient, and reliable electricity.
