In the realm of power systems, achieving top-notch power quality is a constant pursuit. One key technology that comes to the rescue is the Active Power Filter (APF).

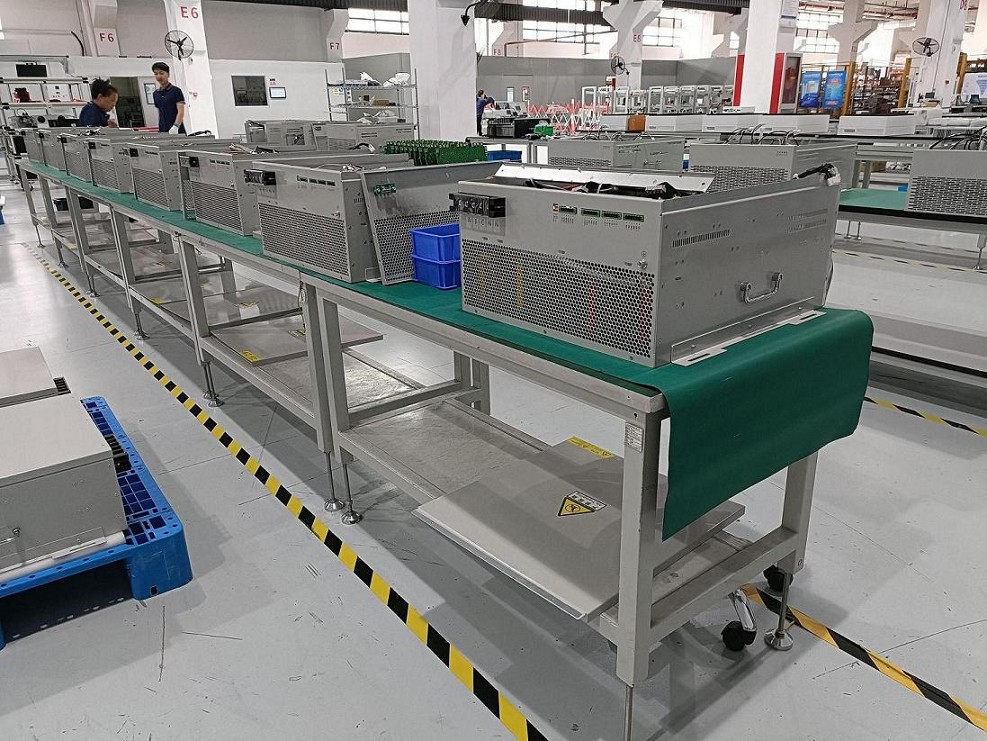

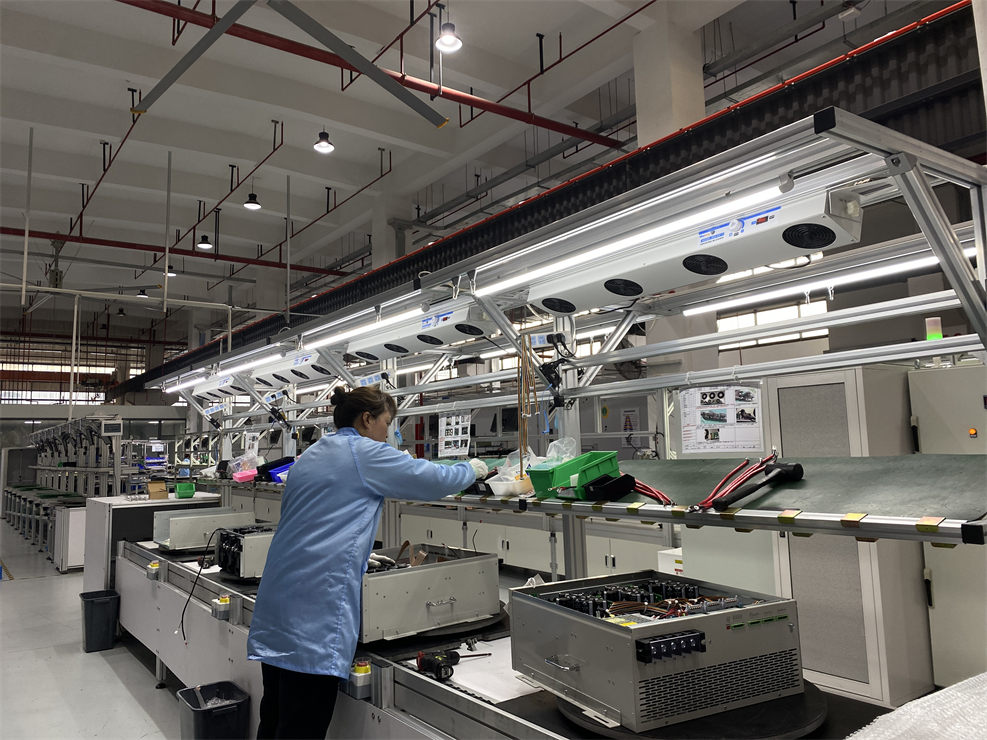

The Active Power Filter Production Line plays a crucial role in ensuring the efficient and reliable operation of power systems. Often, we only notice power quality problems when disasters strike. System malfunctions, equipment failures, process halts, data losses, IT disruptions, or power outages which not only cause chaos but also present significant challenges in promptly identifying the underlying causes. They result in a considerable waste of time and money that could have been avoided with proactive measures.
Power quality is precisely defined in relevant standards. EN 50160, for example, provides detailed descriptions of the voltage characteristics within the power supply network. The 3rd edition of IEC 61000-4-30 sets specific accuracy requirements for measuring the quality of the power grid and classifies devices based on their capabilities.
Class A devices, being the advanced option, offer exceptional measurement accuracy. They are indispensable in scenarios where precision is of utmost importance, such as in critical infrastructure or complex industrial processes. This high level of accuracy ensures reliable, repeatable, and comparable results, which is essential for accurate billing and ensuring the smooth operation of sensitive equipment.
The 3rd edition of IEC 61000-4-30 clearly outlines the mandatory measurement items for Class A devices. These encompass not only the obvious parameters like power frequency, voltage unbalance but also harmonics/inter-harmonics, total harmonic distortion, flicker, and etc. Transient measurement, while optional, can provide additional valuable insights in certain applications.
Class S devices, on the contrary, have more relaxed measurement accuracy requirements. Their data and event records tend to be more qualitative in nature, and the number of measured quantities is relatively smaller. The mandatory items for Class S devices typically include power frequency, supply voltage magnitude, voltage unbalance, voltage dips/swells/interruptions, and rapid voltage changes.
The decision between choosing Class A and Class S devices hinges on the specific needs and requirements of a particular application. In some cases, a slightly lower level of accuracy might be sufficient to meet operational needs. However, in situations where precision is non-negotiable, only Class A devices will suffice. Understanding these distinctions is of paramount importance for optimizing power quality and guaranteeing the stability and reliability of the entire power system.
APF technology, in combination with strict adherence to established standards, holds immense significance in today's power-dependent world. Whether you are an engineer responsible for designing and maintaining power systems, a facility manager striving to ensure uninterrupted operations, or an informed consumer concerned about the quality of the power you rely on, having a comprehensive understanding of these concepts is the key to driving progress and ensuring the efficient and reliable delivery of power.
The Active Power Filter (APF) is not just a technical component but a crucial element in maintaining the integrity and performance of modern power systems. It helps to mitigate the negative effects of power quality issues, reducing the risk of equipment damage and improving overall system efficiency.
APF and power quality standards form the solid foundation for a reliable and sustainable power ecosystem. As our reliance on power continues to grow, it is imperative that we keep innovating and evolving our technologies and practices to meet the ever-increasing demands of our power-hungry world. This requires continuous research and development, investment in infrastructure, and a collective effort from all stakeholders to ensure that power is delivered safely, efficiently, and with the highest quality.
The exploration and implementation of APF technology, along with adherence to power quality standards, are essential for building a power infrastructure that can support the needs of our modern society. Let us all strive towards this goal to create a more reliable and sustainable power future.
