Understanding Harmonic Loss and Its Impact on Power Quality
Power quality is crucial for determining the efficiency of any motor. Several key parameters of power quality include harmonics, voltage unbalance, and voltage fluctuations.
In an alternating current (AC) system, voltage potential and the current through the load circuit are described in terms of frequency and amplitude. The current frequency matches the voltage frequency as long as the load resistance or impedance remains constant. In linear loads, like resistors, capacitors, or inductors, the current and voltage share the same frequency. When the characteristics of these components remain unchanged, the frequency of the current does not vary.
However, with non-linear loads such as switching power supplies, saturating transformers, capacitors charging to peak supply voltage, and converters used in drives, the load characteristics are dynamic. As the voltage amplitude changes and the load impedance fluctuates, the current frequency alters. These changes in current and resulting complex waveforms are a consequence of these load variations.
What are Harmonics?

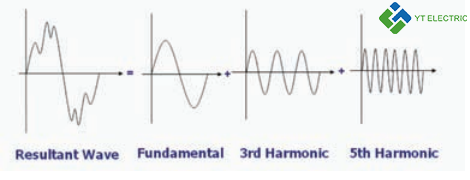

Harmonics are additional voltage and current frequencies that overlay the standard sinusoidal voltage and current waveforms. Typically, these harmonic frequencies are multiples of the fundamental frequency, which is 50 hertz (Hz). Harmonics are generated by "switching loads" (or "nonlinear loads") where current does not vary smoothly with voltage as it does in simple resistive and reactive loads. Each time the current is switched on and off, a current pulse is created. The resulting pulsed waveform comprises a spectrum of harmonic frequencies, including the 50Hz fundamental and its multiples.
Higher-frequency waveforms, collectively referred to as total harmonic distortion (THD), do not perform useful work and can cause significant problems. The operation of non-linear loads causes distorted current, which is path-dependent. While the impact of current distortion on loads within a facility is minimal, harmonic currents cannot flow into equipment other than the non-linear loads that caused them. However, current distortion's effect on distribution systems can be serious, primarily because of the increased current flowing through the system. Consequently, current harmonics increase losses in both customer and utility power system components.
Sources of Harmonics
Several non-linear loads generate harmonics, including:
- Static Power Converters and rectifiers, used in UPS and battery chargers.
- Arc Furnaces.
- Power Electronics for motor controls (AC/DC Drives).
- Computers.
- Television receivers.
- Saturated Transformers.
- Fluorescent Lighting.
- Telecommunication equipment.
Effects of Harmonics
Harmonics affect various network elements within a system in multiple ways. Whenever harmonic currents flow through equipment, several issues arise:
1. Increased Losses: Due to higher frequency, devices like motors and transformers with laminated cores suffer higher losses. Harmonic currents cause additional heating in these devices.
2. Cable Heating: Harmonic currents tend to flow through the outer skin of conductors due to the skin effect, resulting in conductor heating.
3. Nuisance Tripping: Harmonics can cause unintended tripping of relays and failure of capacitors installed for power factor improvement.
4. Measurement Errors: Certain harmonic currents (e.g., 5th harmonic) have a reverse phase sequence, leading to incorrect readings in electro-mechanical metering devices. In polluted networks, normal induction motors may not develop the necessary torque due to harmonic currents generating counteracting torque.
5. Telecommunication Interference: Higher order harmonics interfere with telecommunication systems. When a telephone line runs parallel to a power line with harmonics, noise is introduced into the telephone line, a phenomenon known as telephonic interference.
6. Device Malfunction: Highly polluted voltage can lead to malfunction of devices like thyristors, which depend on the zero crossing of the voltage waveform, potentially causing commutation failure.
7. Power Factor Reduction: High harmonic content results in a low power factor. The angle between the fundamental components of current and voltage gives the Displacement Power Factor (DPF), whereas the angle between voltage and RMS current (both fundamental and harmonic) gives the total Power Factor (PF). For linear loads, PF and DPF are the same. However, for loads generating many harmonics, PF is much lower than DPF.
8. Neutral Overheating: In a 3-phase, 4-wire system, certain harmonic currents (e.g., 3rd harmonic) tend to flow in the neutral. Many domestic and commercial non-linear loads generate substantial amounts of 3rd harmonic current, causing the neutral conductor to overheat, which may lead to melting. In extreme cases, the neutral current can exceed 1.5 times the normal line current.
9. Generator Stress: Harmonic current affects generators, especially those operating at maximum capacity. These generators often lack the margin to accommodate additional heating losses caused by harmonic currents, leading to insulation deterioration in electrical equipment.
Harmonic Loss in Motors
When harmonic currents flow through motors, they generate additional losses and heat. This heat can reduce the motor's efficiency and lifespan. Harmonic currents cause extra losses due to their higher frequency, leading to higher iron losses in the motor's core and additional copper losses in the windings. This not only reduces the efficiency of the motor but also increases its operating temperature, potentially causing thermal stress and premature failure.
Addressing Harmonic Loss
To address harmonic loss and improve power quality, several strategies can be employed:
1. Installation of Harmonic Filters: Active and passive harmonic filters can be installed to reduce harmonic distortion in the power system. These filters help mitigate the effects of harmonics and improve overall power quality.
2. Use of Power Factor Correction Devices: Devices like Static Var Generators (SVG) and Active Power Filters (APF) can be used to correct power factor and reduce harmonic distortion. These devices improve the efficiency of the power system and reduce losses.
3. Regular Maintenance and Monitoring: Regular maintenance of electrical equipment and monitoring of power quality parameters can help identify and address issues related to harmonics. Using advanced monitoring systems, facility managers can track harmonic levels and take corrective actions when necessary.
4. Design Considerations: During the design phase of electrical systems, considerations should be given to the types of loads and their harmonic generation characteristics. Designing systems to minimize the impact of harmonics can lead to better performance and reduced losses.
Conclusion
Harmonic loss is a critical issue affecting power quality and efficiency in electrical systems. Non-linear loads generate harmonics that can cause additional losses, overheating, and equipment malfunctions. Addressing harmonic loss through the installation of filters, use of power factor correction devices, regular maintenance, and thoughtful design can significantly improve power quality and system efficiency. By understanding and mitigating the impact of harmonics, facility managers and engineers can ensure the reliable and efficient operation of electrical systems, leading to reduced energy costs and longer equipment lifespan.
Real-world Examples and Benefits
To understand the importance of addressing harmonic loss, let's consider a few real-world examples and their benefits:
1. Manufacturing Plant: In a large manufacturing plant, numerous non-linear loads such as welding machines, variable frequency drives, and computers create significant harmonic distortion. By installing harmonic filters and using power factor correction devices, the plant can reduce energy losses, lower operating temperatures of equipment, and prevent unexpected shutdowns due to tripping relays. This results in improved productivity and reduced maintenance costs.
2. Commercial Building: In a commercial building with multiple floors and a variety of electronic equipment, harmonics can lead to overheating of neutral conductors and increased electricity bills. Implementing harmonic mitigation strategies not only ensures a safer electrical system but also enhances the building's energy efficiency, leading to lower utility expenses and a more comfortable environment for occupants.
3. Data Center: Data centers house critical IT infrastructure that must operate reliably. Harmonics can cause power quality issues that affect the performance of servers and cooling systems. By addressing harmonic loss, data centers can achieve higher reliability, prevent data loss, and reduce cooling requirements, ultimately saving on energy costs and extending the life of their equipment.
4. Utility Power System: Utility companies that deliver electricity to various consumers must manage harmonic distortion to maintain grid stability. By deploying harmonic filters and power factor correction equipment at strategic points in the distribution network, utilities can minimize energy losses, improve voltage stability, and ensure a consistent power supply to their customers.
Simple Steps for Businesses
For businesses looking to tackle harmonic loss and improve their power quality, here are some simple steps to follow:
1. Conduct a Power Quality Audit: Hire a professional to perform a comprehensive power quality audit of your facility. This audit will identify sources of harmonics and areas where improvements can be made.
2. Install Harmonic Filters: Based on the audit results, install appropriate harmonic filters to mitigate the effects of harmonics. Active filters are particularly effective for dynamic loads, while passive filters can be used for more stable environments.
3. Upgrade to Modern Equipment: Consider upgrading old or inefficient equipment that generates high levels of harmonics. Modern devices often have built-in features to minimize harmonic generation.
4. Implement Regular Maintenance: Establish a routine maintenance schedule for your electrical systems. Regular checks can help detect and address issues before they become major problems.
5. Educate Staff: Train your staff on the importance of power quality and the impact of harmonics. Educated employees can help maintain best practices and identify potential issues early.
Final Thoughts
Understanding and addressing harmonic loss is essential for maintaining efficient and reliable electrical systems. Harmonics can cause various problems, including increased losses, overheating, equipment malfunctions, and higher energy costs. By taking proactive steps to mitigate harmonic distortion, businesses and facilities can improve their power quality, enhance system performance, and achieve significant cost savings. With proper planning, maintenance, and the use of advanced technologies, the challenges posed by harmonics can be effectively managed, leading to a more stable and efficient power system for all.
