Introduction
In today’s world, power quality matters more than ever. You’ve probably heard terms like "Total Harmonic Distortion (THD)" and "Power Factor" thrown around, especially when dealing with electrical systems. But what do they really mean, and how can understanding them improve your system's performance? Let’s break it down.
THD essentially measures the level of distortion in your electrical system. It’s the amount of harmonic frequencies on a line compared to the system’s fundamental frequency (typically 60Hz). If you’re thinking, “Harmonics? Is that music?”—not quite! Harmonics are like unwanted frequencies that mess with your electrical signal, making it less efficient.
You can measure both voltage harmonics and current harmonics, but the goal is to keep these in check. Here's a simple formula for voltage THD:
THD = √(Σ(Vn_rms²) / Vfund_rms) × 100%
Where:
An ideal sine wave (no harmonics) has a THD of 0%, but anything above that means your system has distortion. The higher the percentage, the more distortion there is.
In a nutshell, harmonics occur when you have non-linear loads—loads that pull current in uneven pulses, like computers or LED lighting. These cause distortions in the current, which in turn affect the voltage. And if these harmonics aren't managed, they can heat up your system, damage equipment, and waste energy.

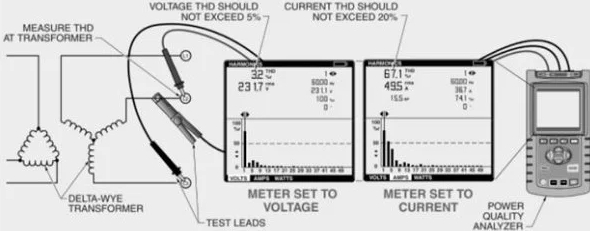

One important thing: when you measure THD, don’t do it at the load (where the harmonics are generated). Instead, measure it at the transformer for a more accurate reading. When THD is measured at full load, it closely matches another important metric—Total Demand Distortion (TDD), which compares the harmonic current to the system’s max current load over time.
Power factor is another key metric. Simply put, it tells you how efficiently your system uses the electricity it draws. A perfect power factor is 1, meaning all the energy is being used for productive work. Anything less means there’s some wasted energy.
Power factor can be broken down into:
Power factor is calculated like this:
PF = cos(θ)

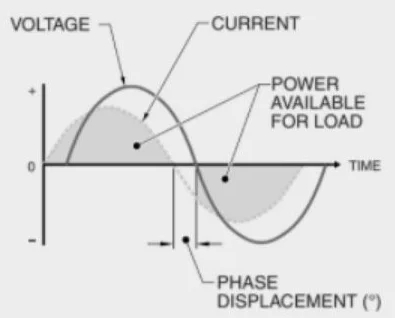

Where θ is the phase angle between current and voltage. A lower power factor indicates inefficiency, and in most cases, adding capacitors can correct this.
When harmonics come into play, things get a bit more complicated. Regular capacitors can’t correct the harmonic component of the power factor because they might end up amplifying the harmonics. Instead, you need to use specialized filters to manage this. Here’s the formula for power factor including harmonics:
PFTot = PF × PFTHD
This accounts for both the displacement between current and voltage, and the distortion caused by harmonics. As an example, if your displacement power factor is 0.906 and the THD is 49%, the total power factor comes out to around 0.814. Not great, right? That’s why keeping both the displacement and distortion factors in check is so important.
Here’s another quick term to know: Current Crest Factor. It compares the peak value of a waveform to its RMS value, helping you understand how much distortion is in a waveform. In a perfect sine wave, this ratio is 1.414, but higher values indicate more distortion and potential overheating of equipment.
Another player in all of this is source impedance, which affects how easily harmonics form. The lower the source impedance, the more easily harmonics are generated. Increasing impedance can reduce distortion, and this is often done by adding line reactors or isolation transformers.

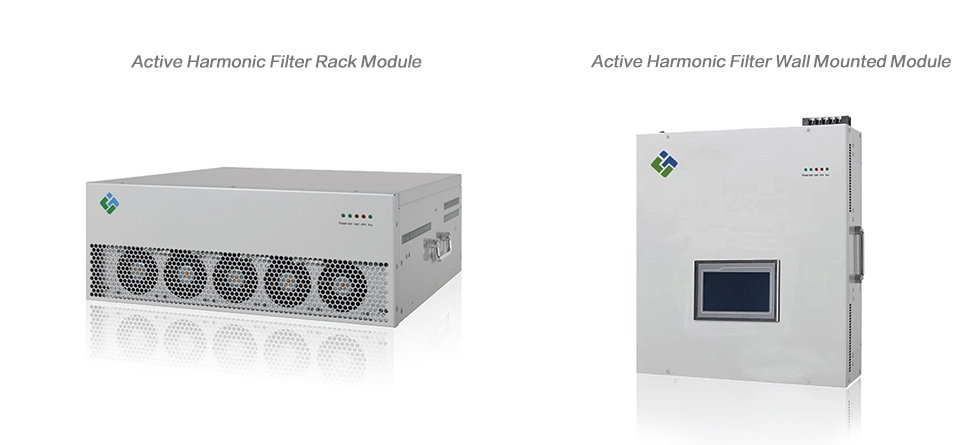

All this talk about distortion and power factor might have you wondering: how can I fix it? That’s where YT Electric comes in. We specialize in helping you reduce harmonics and improve power factor through our Static Var Generators (SVG) and Active Harmonic Filters (AHF).
Our SVGs dynamically supply reactive power to maintain a steady power factor, while our AHFs handle those pesky harmonics, keeping your THD levels low. Whether you’re dealing with a system full of non-linear loads or simply want to optimize your power distribution, these solutions can save energy, protect your equipment, and help you meet regulatory standards like IEEE 519.
With YT Electric’s solutions, you can keep your system running efficiently, minimize distortion, and reduce energy waste—all while ensuring the longevity of your equipment.
